Inloader pallets – robust, durable and secure
The highest safety standards with optimal handling and flexible use characterise the inloader pallets by R-TECH.
The inloader pallet versions can be selected in standard and extra robust with securing elements for solid walls and double walls as well as a post system with plug-in or sliding systems through to individual solutions with plastic surfaces.
Highest security standards through our own security tests
Security requirements are defined differently internationally. We set standards that are right. We counteract the risk of tipping in gusts of wind, damage during transport or movement with innovative, tested systems.

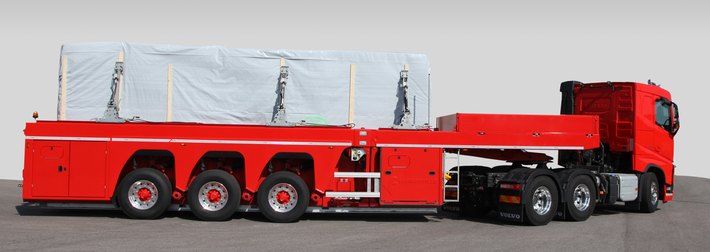

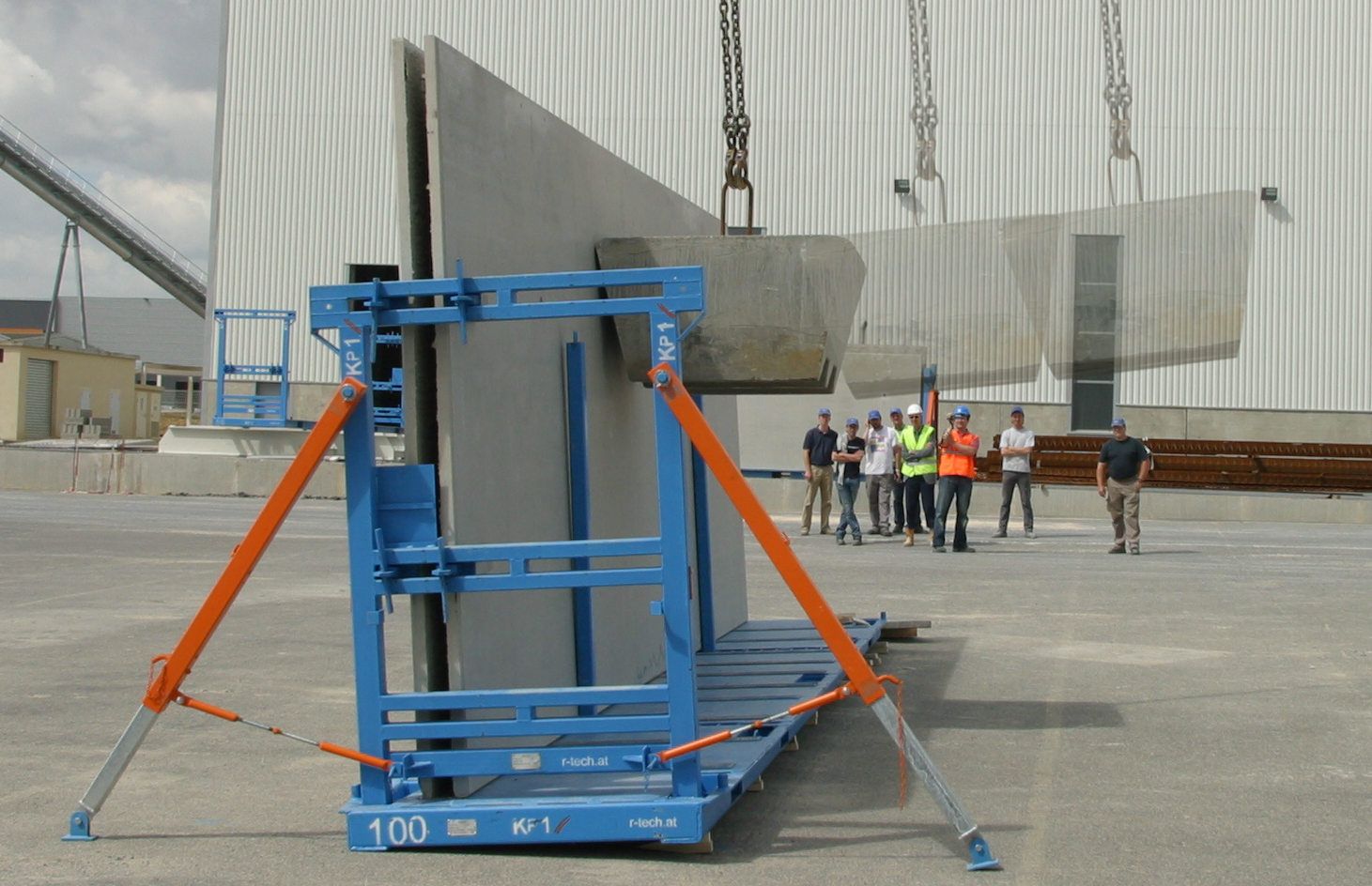

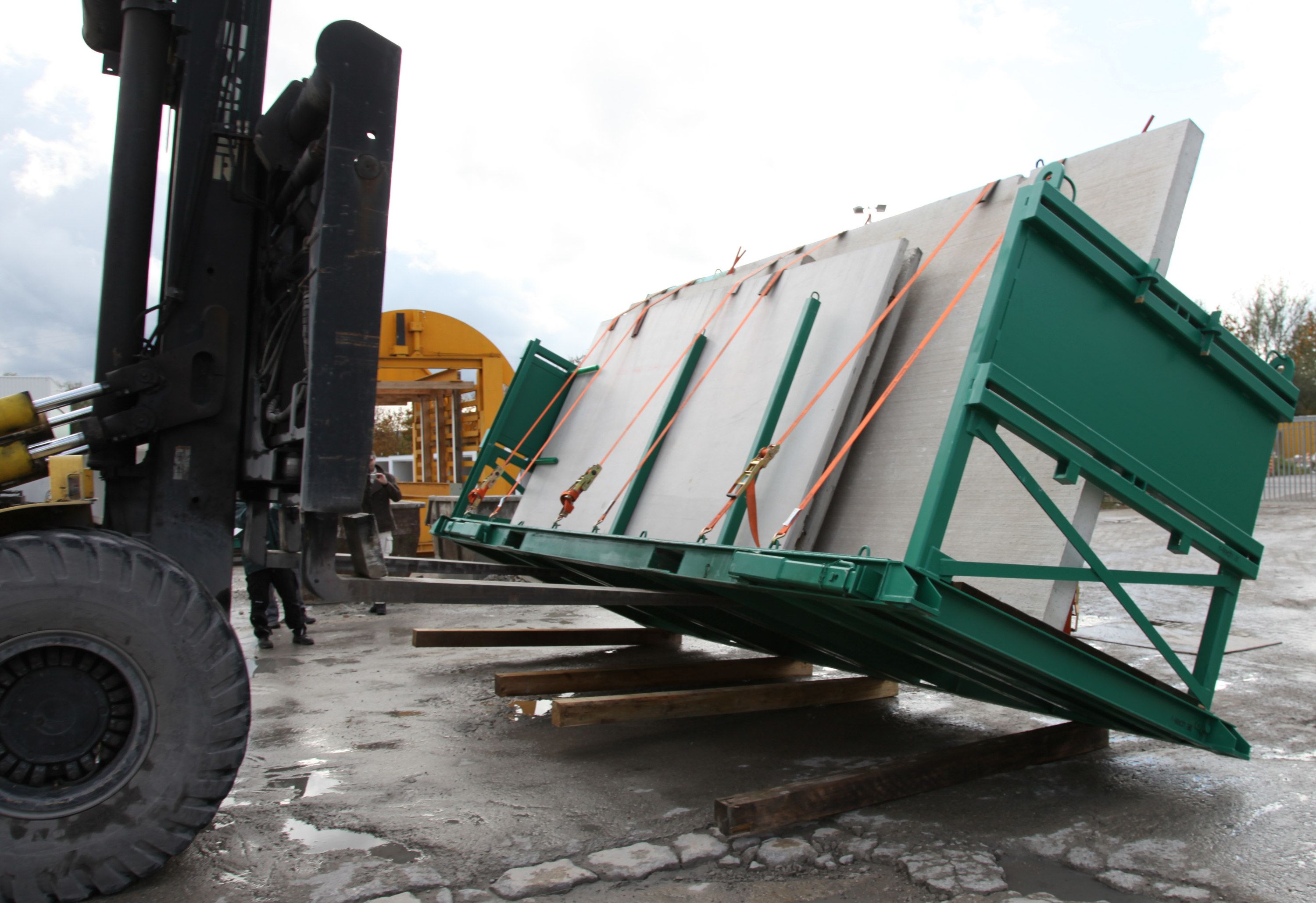

Practical tests have been carried out for load dropping pallets, swap bodies and inloader pallets and give you the assurance that everything is going well on the construction site for people and material. At R-TECH we have exclusively developed telescopic inloader pallets especially for the telescopic inloader FAYMONVILLE PREFAMAX. Efficiency and security are not mutually exclusive. Convince yourself of what our inloader pallets can do.

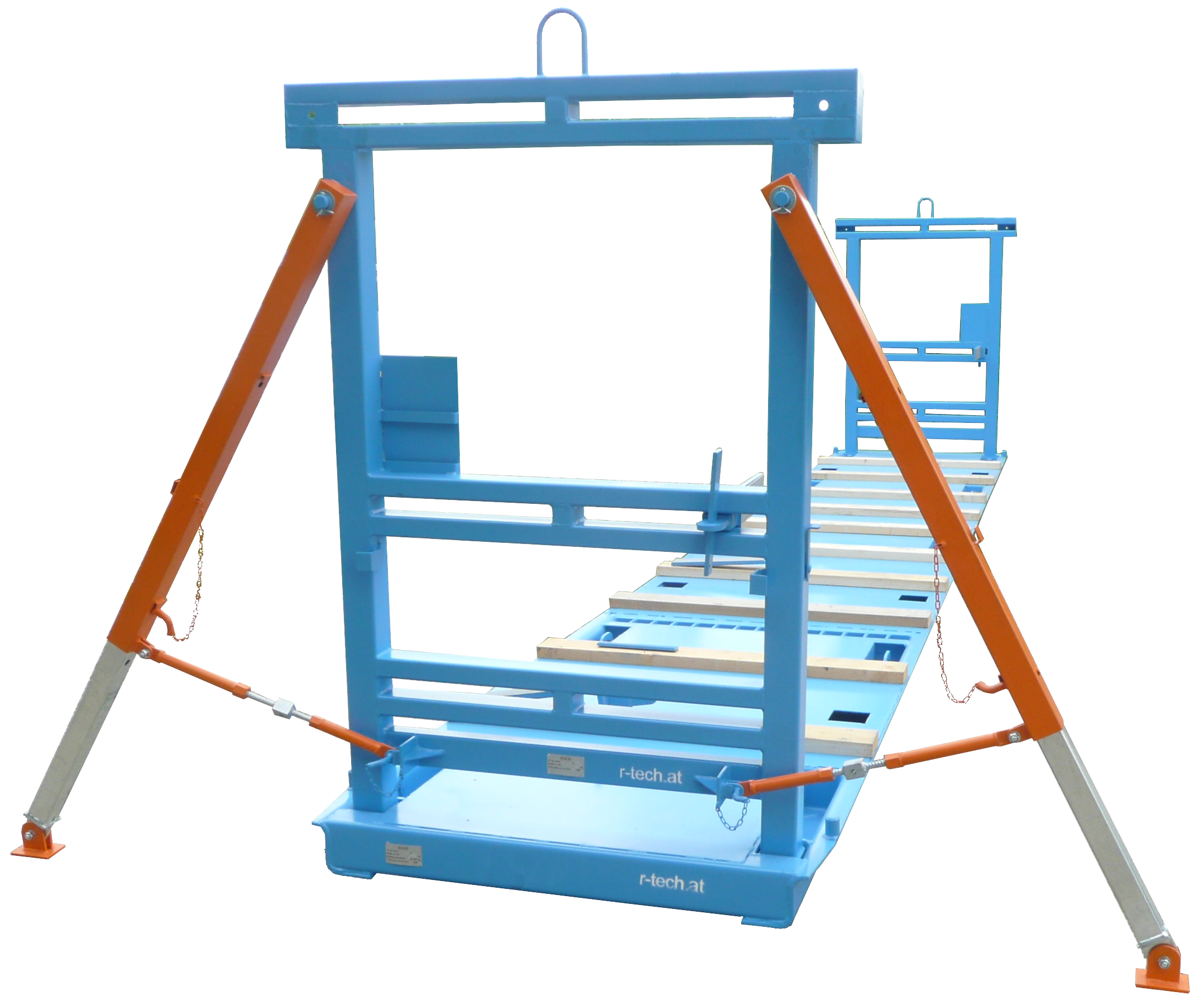

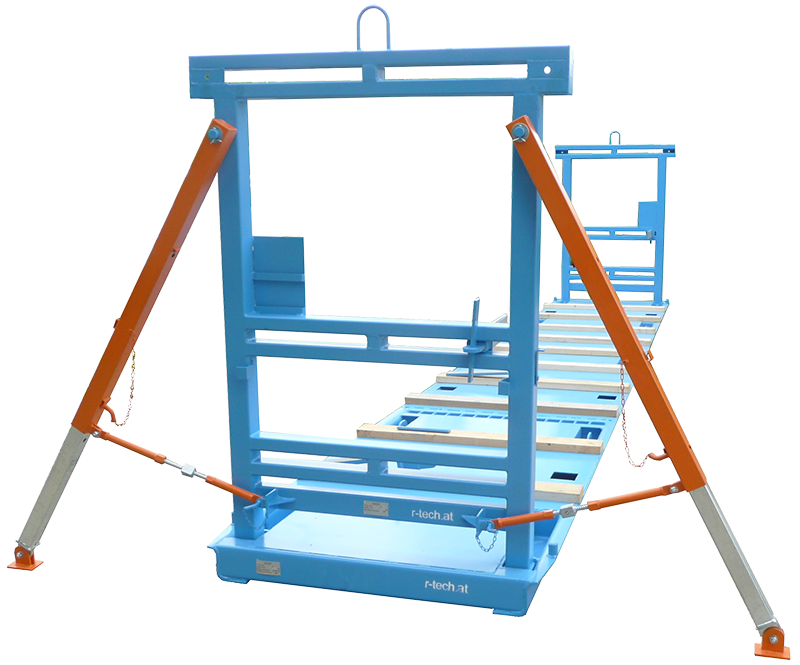

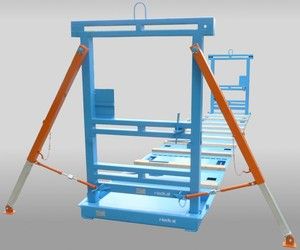

Tried and tested structural security systemsafe goods and accident prevention

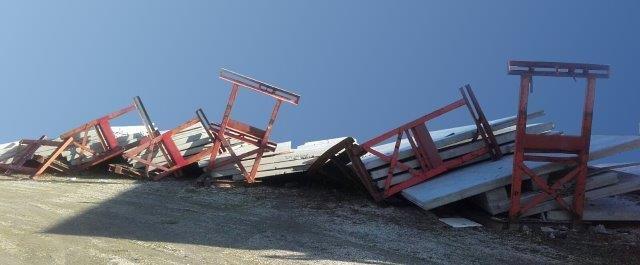

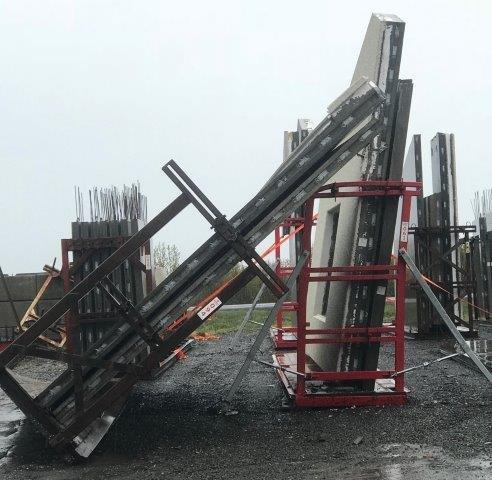

Large construction site after a severe storm, where the extreme case – the domino falling from walls on inloader pallets – can be seen. This serial accident involving several inloader pallets with walls went on until it hit R-TECH inloader pallets with a support system. Our structural supporting system has proven itself to the point that not only our own goods were secured on the pallet, but this accident was also stopped.
Base frames in standard and extra robust
We are versatile and able to support individual concepts with special dimensions and requirements. We offer inloader pallets in 2 variants:
1. Standard
- As an inloader pallet
- Main beam made of high-strength rolled sections
- Crossbeam made of closed, high-strength steel square tubes
- A combination of stability and elasticity
Your benefit: affordable, proven design with optimal adaptation to the transport load for permanent, rework-free, heavy use with all necessary safety standards, with a static test report

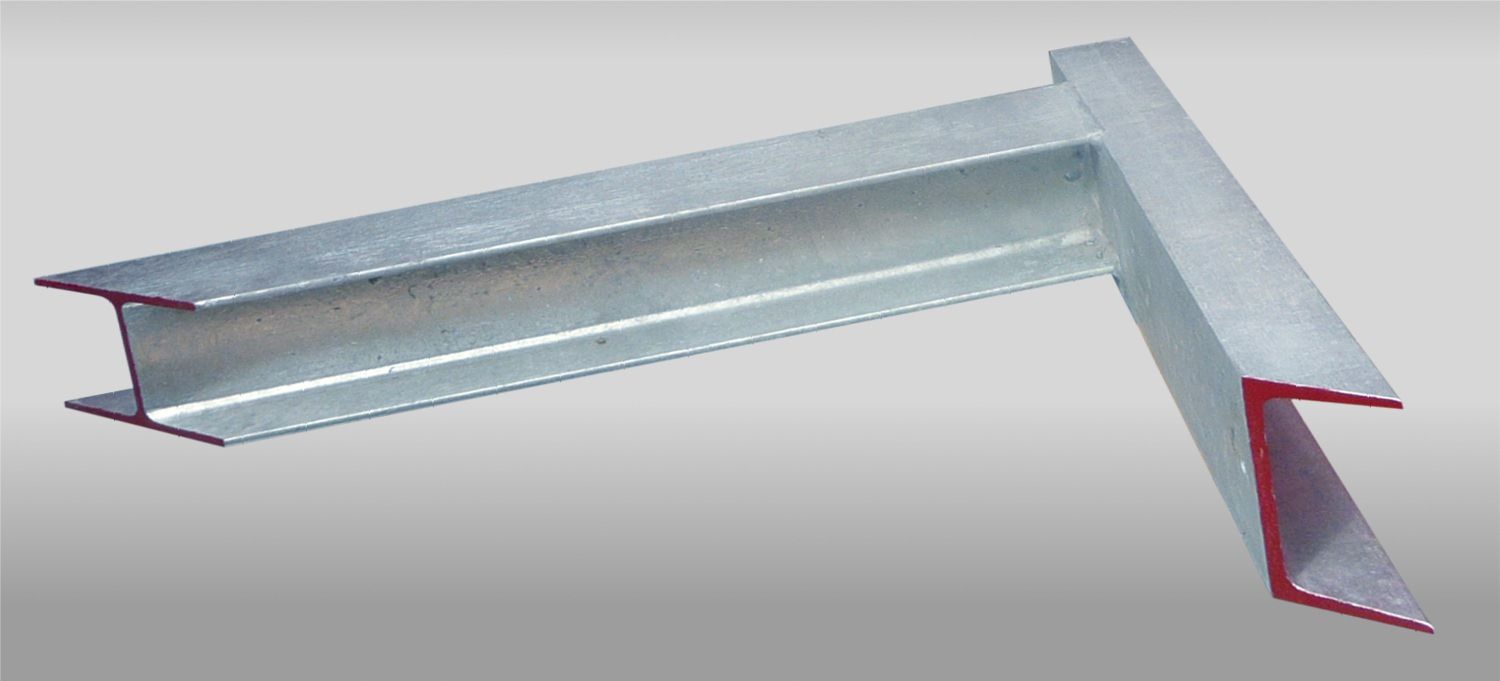

C – Longitudinal beam made of commercially available S355 JR rolled section
I – Crossbeam made from commercially available S235 J rolled section
Our inexpensive inloader pallet is optimally adapted to the load to be transported. It is designed for long-term, rework-free, heavy-duty use and has all the necessary safety standards.

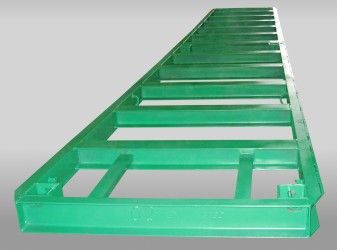

2. Extra robust
- As an inloader pallet
- Main beam made of high-strength, thick-walled, folded sheet steel in Z or U shape
- Crossbeam made of closed, high-strength steel square tubes
Your benefit: lightweight construction with maximum load capacity and torsional stiffness, EN statically tested
1st choice for the transport of sensitive walls, e.g.: brick walls, thin walls, fragile walls and generally the best solution for robust, permanent use

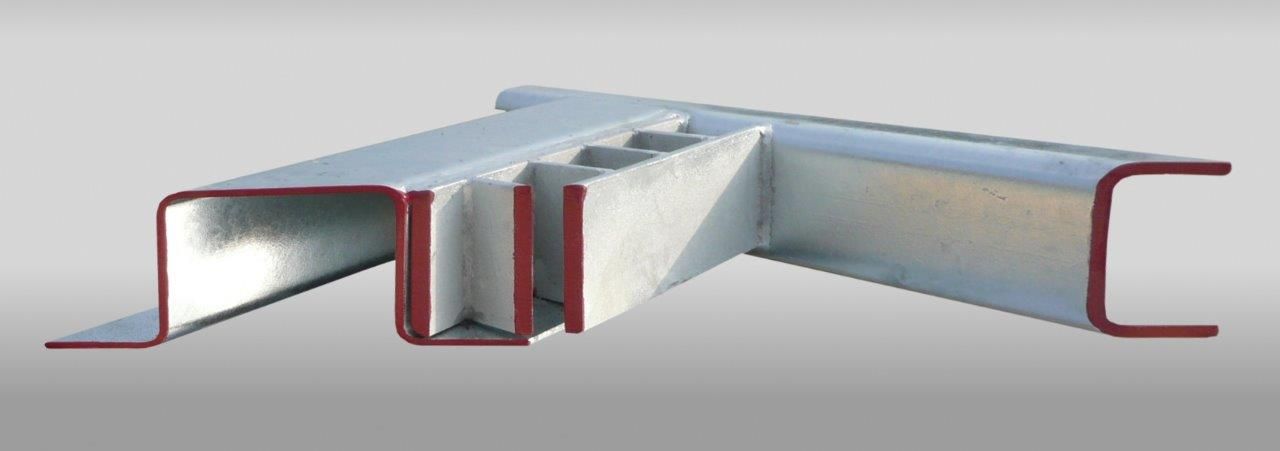

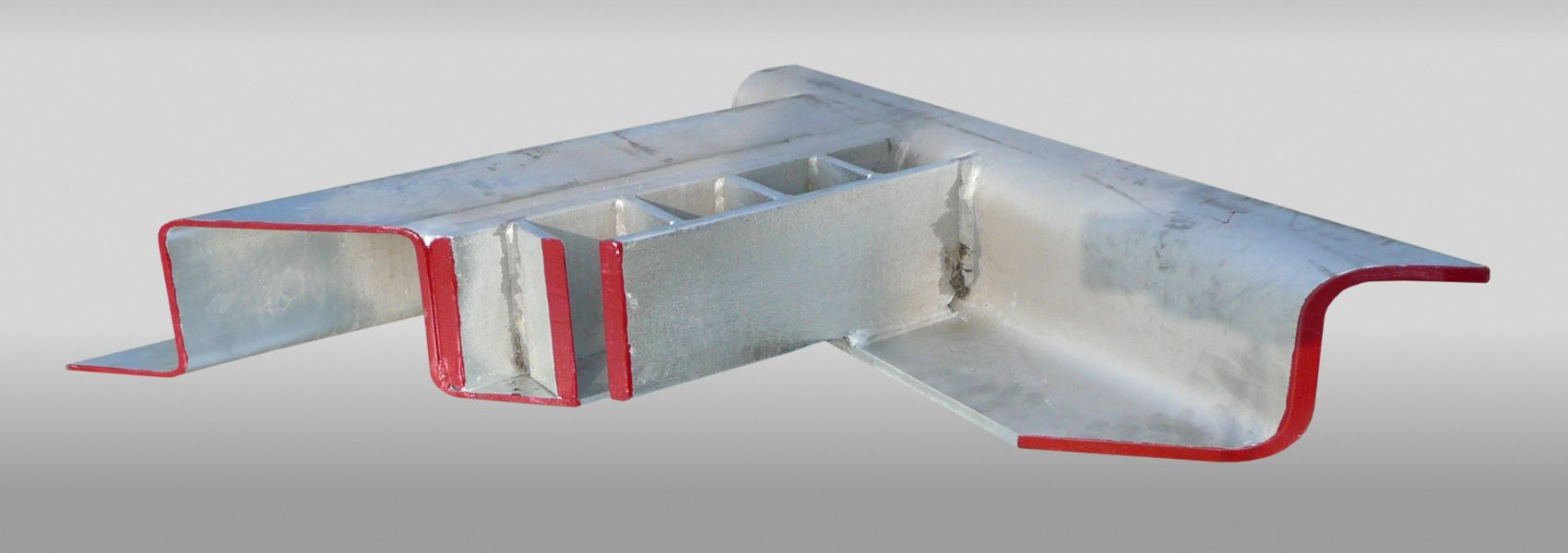

Main longitudinal beam made of folded, high-strength sheet steel in Z or U shape.
Crossbeam made of high-strength sheet steel in omega shape. Load capacity per crossbeam 14 tons statically tested!
U – longitudinal beam made of 12 mm S355 JR sheet metal, alternatively also from 6 mm
Ω – crossbeam made of 6 mm S 355 JR sheet metal
Z - curved longitudinal beam made of 12 mm S355 JR sheet metal, alternatively also from 6 mm
Ω – crossbeam made of 6 mm S 355 JR sheet metal

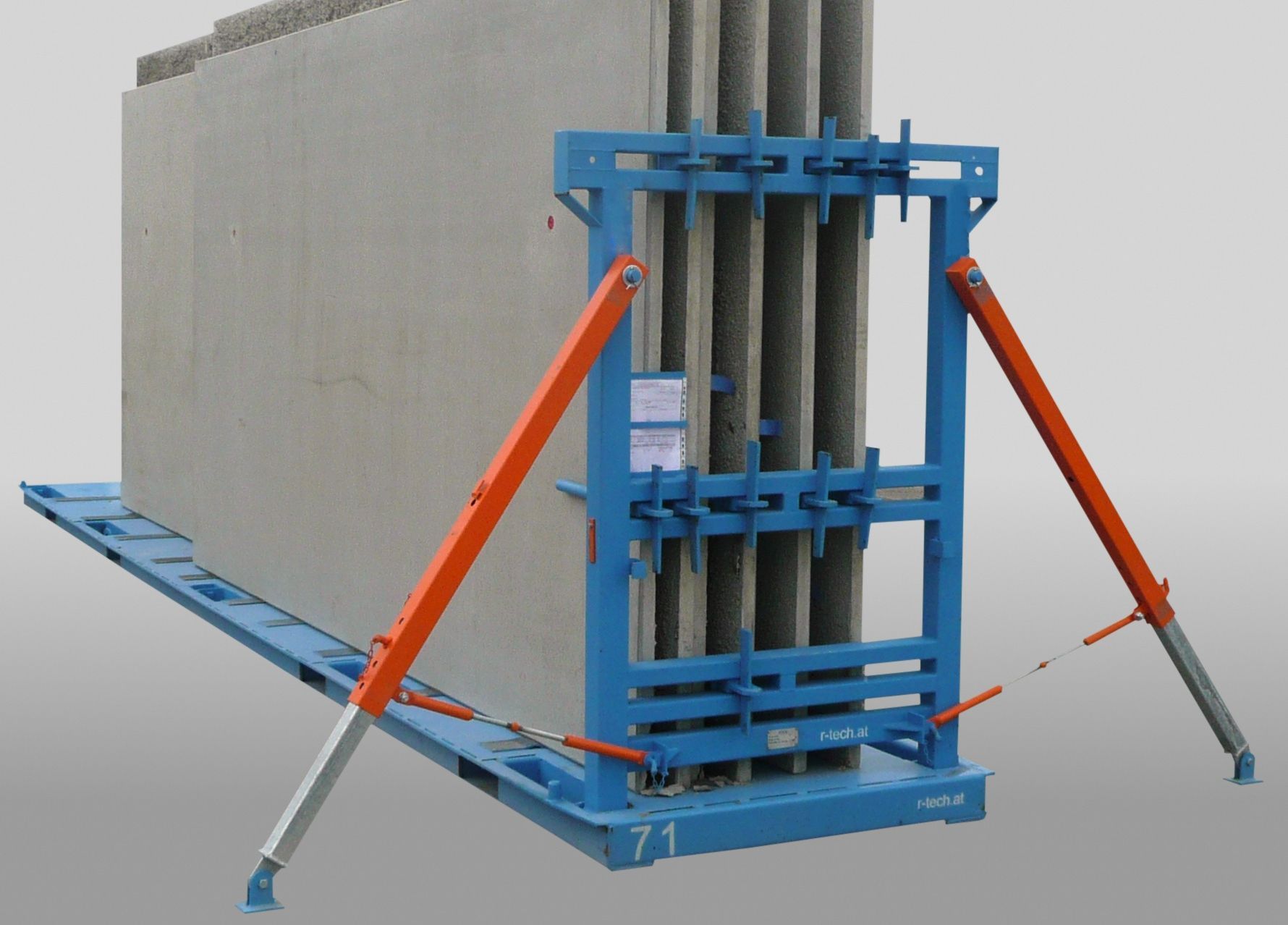

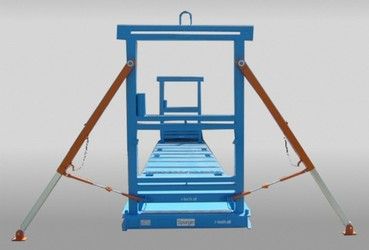

Our safety standard
Security spike & security sword
To fix the transport elements to the gibbets (guide block), we offer security spikes and security swords as required. All R-TECH inloader pallets can be retrofitted with the supporting system.
Our wedge fixation has particularly proven itself in many years of practical use (see safety standard)

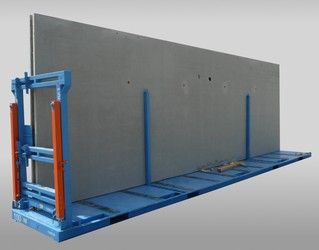

Securing with stakes
For maximum safety with complex concrete walls, we offer the base frames with integrated staketrusses. Stakes can be inserted in the required positions to stabilise the complex parts.
Requirements for base frames
We have developed customised solutions to protect loaded goods during transport.
Base frame with sheet metal floor and hard rubber support /with hard rubber support in the area of the cross bearers

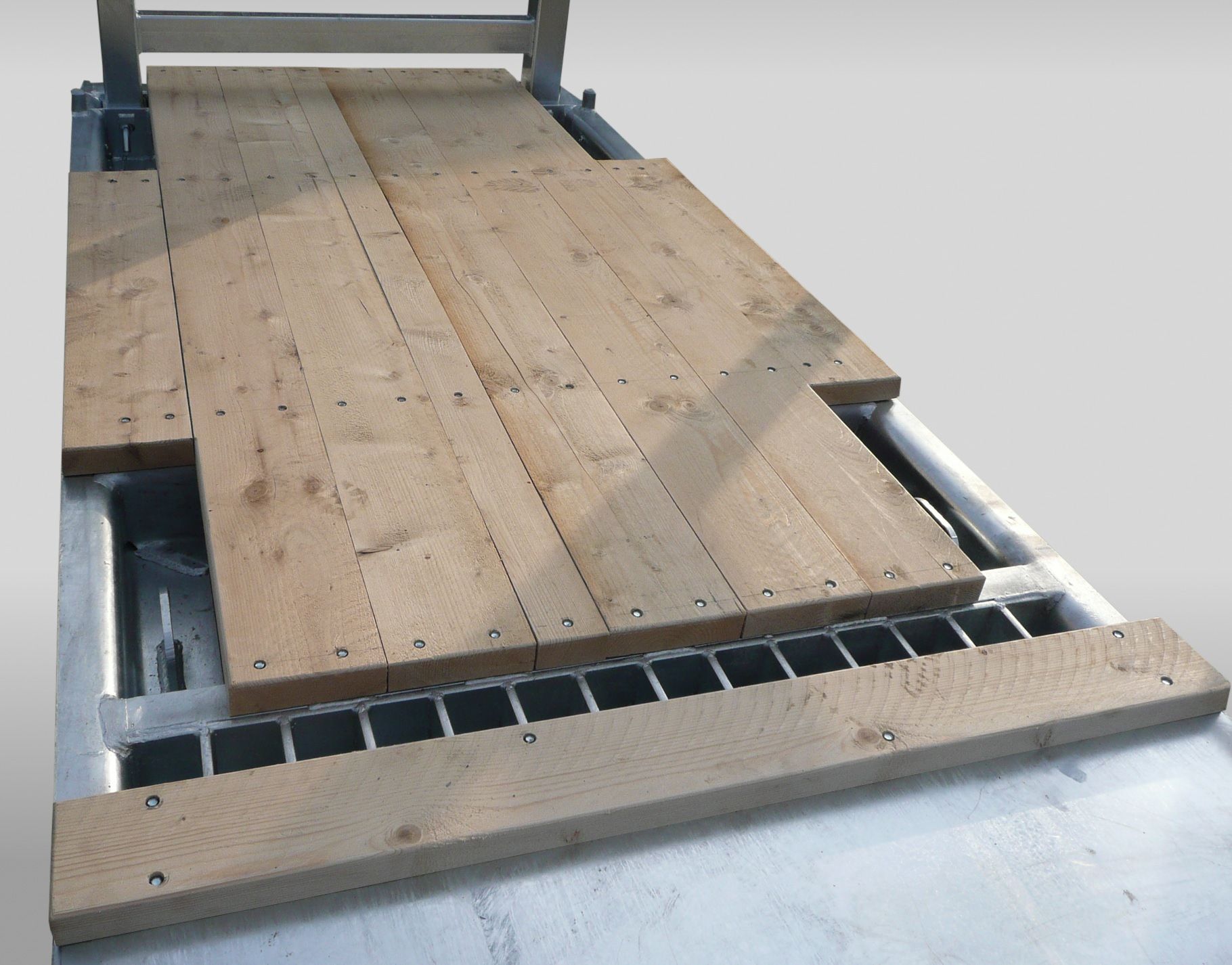

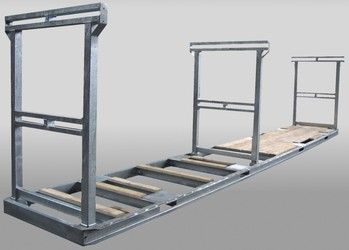

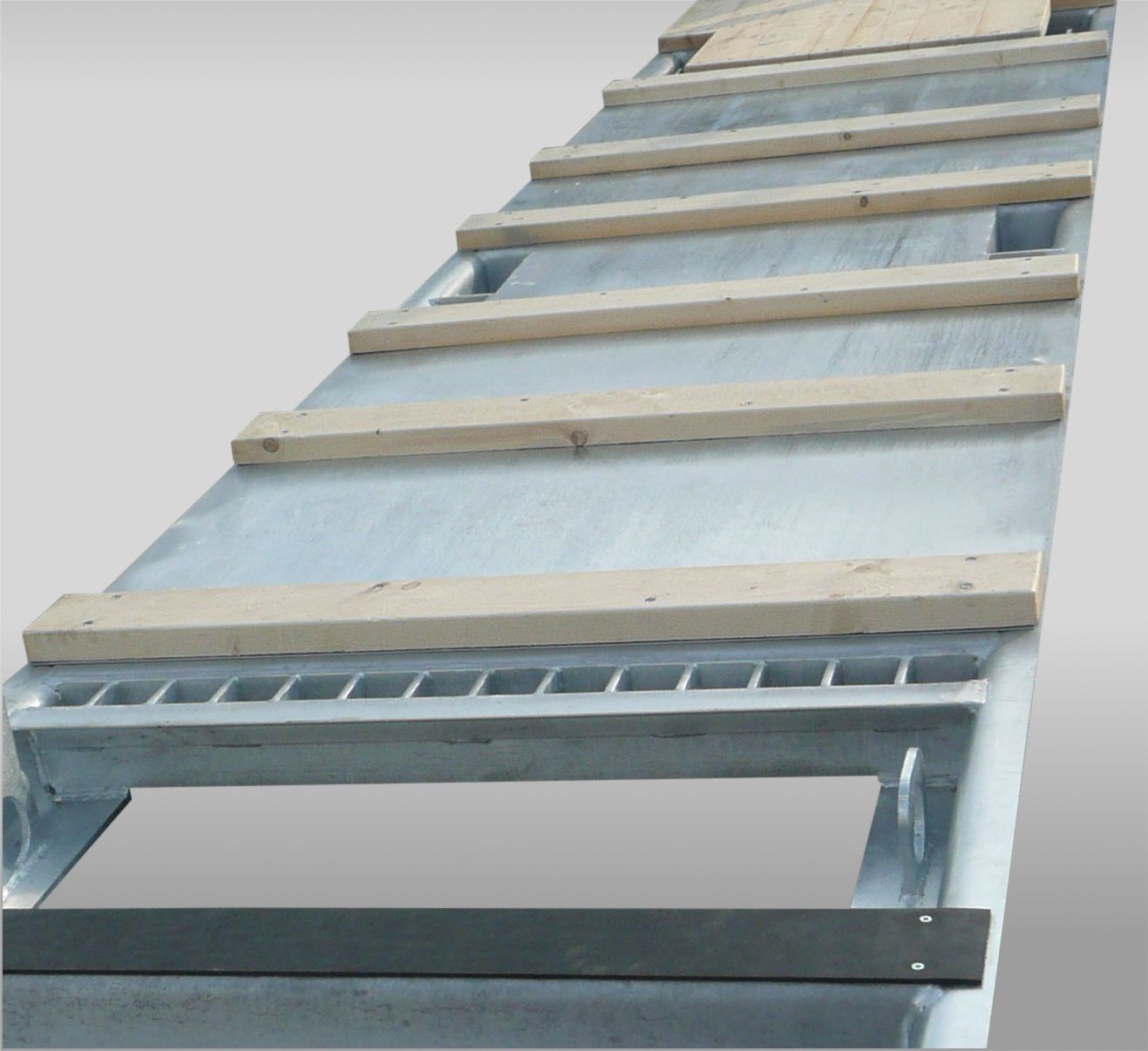

Base frame with wooden support
Base frame with wooden support in the whole area

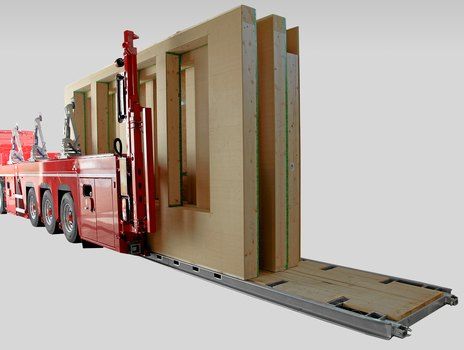

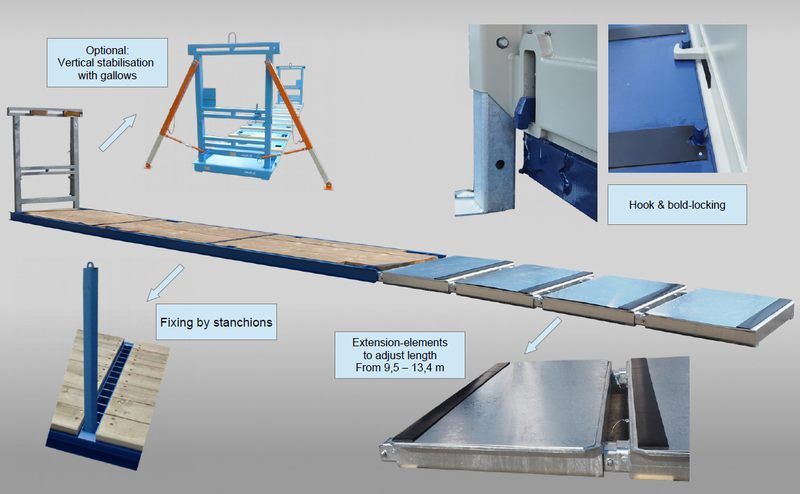

Innovation exclusively by R-TECHspecially developed telescopic pallet
Our proven load securing elements are of course also available for the telescopic pallet. Loading length: 9.5 to 13.4 meters.
Innovation by R-TECH, available soon.
Our telescopic inloader pallet was specially developed by R-TECH for the telescopic inloader FAYMONVILLE PREFAMAX - Exclusively by R-TECH!

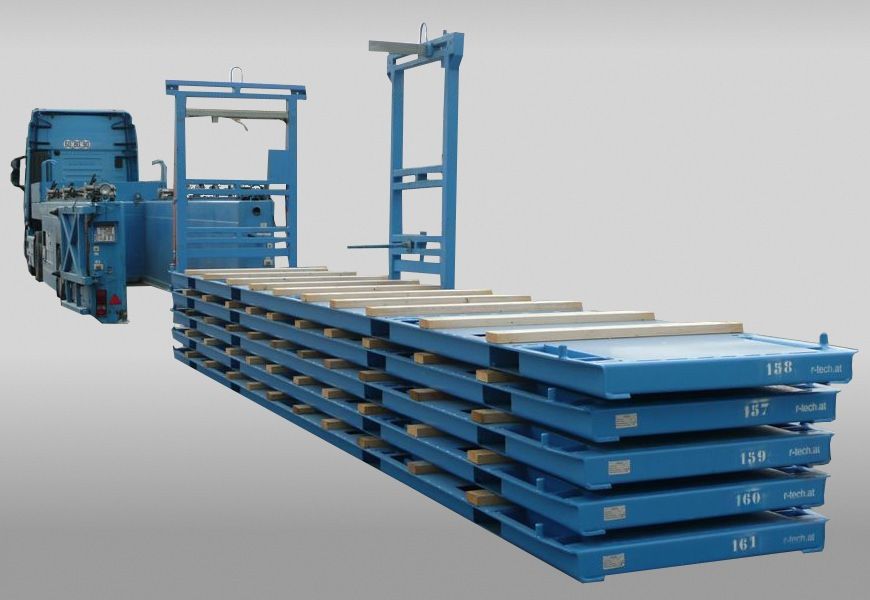

Efficient transport option
Thanks to the modular design, all pallet variants can be transported in a stack. This results in potential savings in return transport.
Inloader pallets by R-TECH for use in precast construction
Are you looking for an inloader pallet that adapts optimally?
We offer you our telescopic inloader range. Do you prioritise safety and efficiency in equal measure? We offer you the solution for precast concrete parts together with depositing pallets and turning devices.
Do you want comprehensive information and advice? Then feel free to get in touch. We are here for you and will support you with innovative, tailor-made solutions!
