Load dropping pallets for prefabricated wood construction: User-optimised transport frames specially made for the precast wood industry

Video R-TECH load dropping pallet with insertion slot:

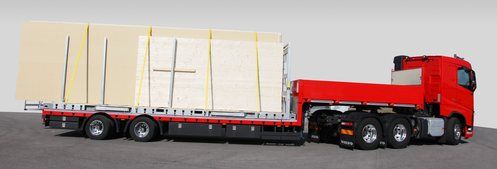

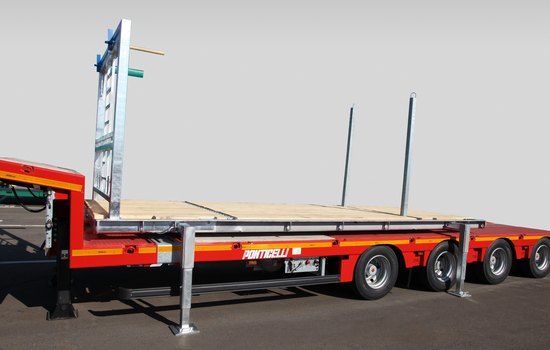

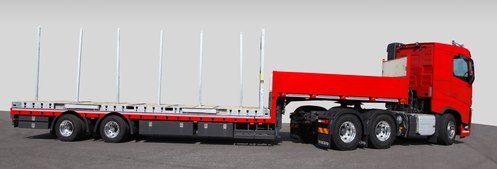

Swap bodies are particularly characterised by their high connection rigidity. With this property, your products are passively protected against damage. In Europe, there is no comparable professionally stable design with a compact dead weight. Due to the telescopic dropping feet, the transport is universally possible with any standard semi-trailer (height: 1200 mm), low-bed trailer (height: 800 mm) or mega-trailer (height: 1000 mm).

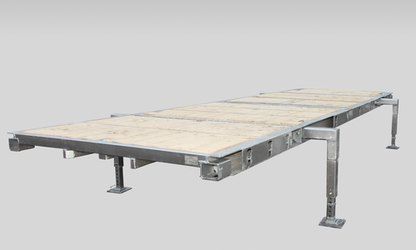

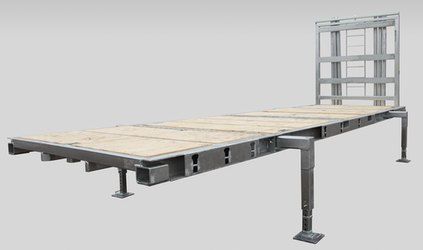

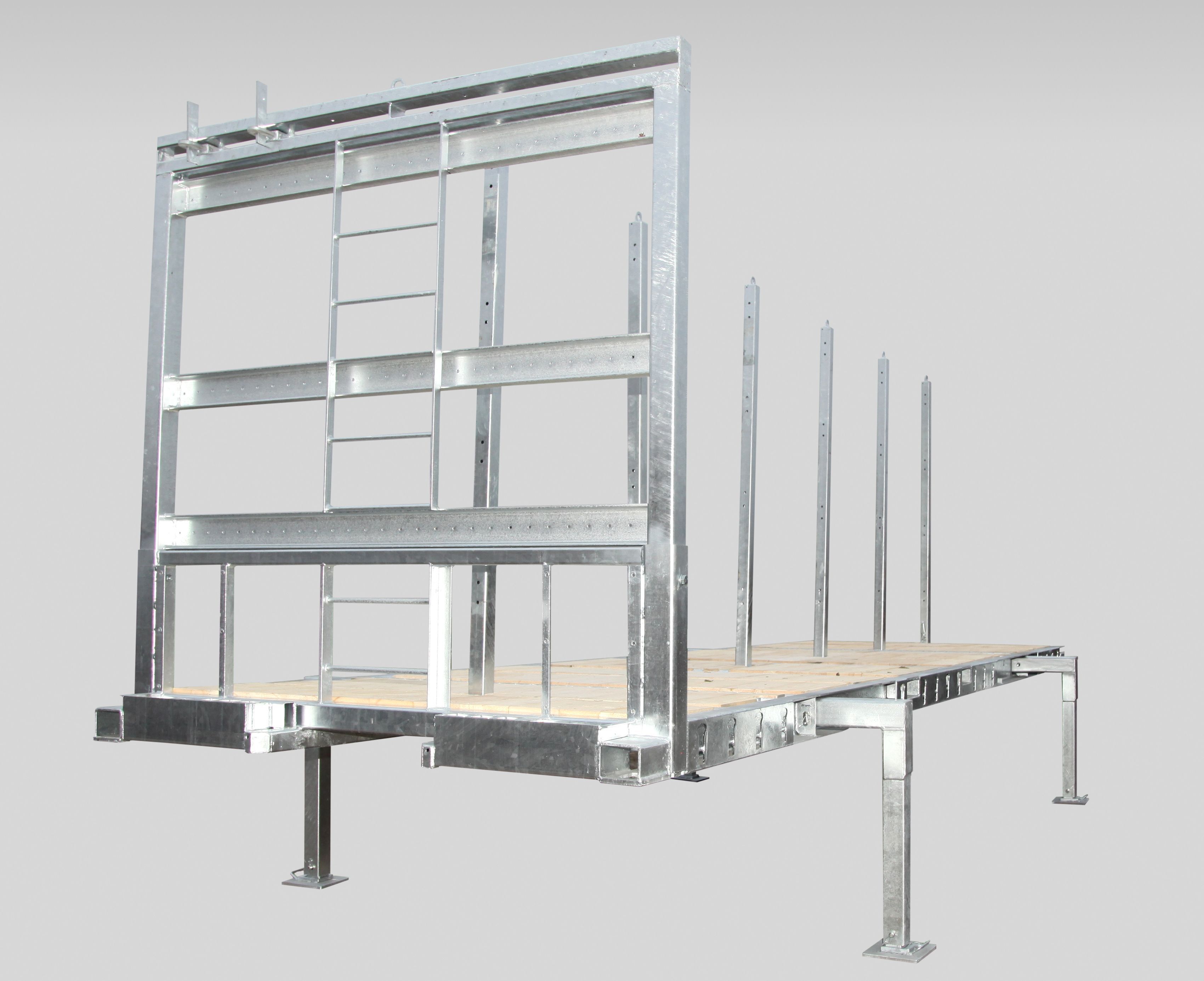

R-TECH load dropping pallets for prefabricated wood construction

Length 7980 mm
Width 2438 mm
Insertion slot     600 or 700 mm
Construction height 170 mm
Load capacity 20.000 kg
Lowering height for low loaders 600 – 1300 mm according to customer requirements
